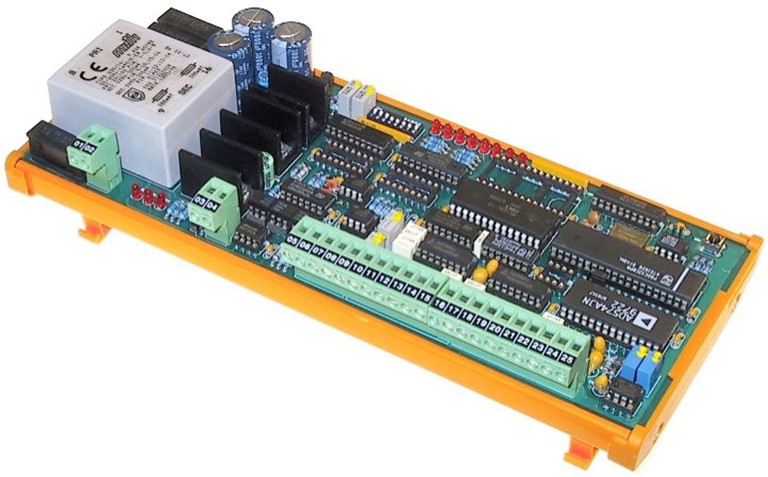

The microprocessor form ADI-16 manages 16 analogical input signals and 2 analogical/digital outputs and a RS485 serial interface to communicate data. By a DIP switch the addresses to distinguish every form in a bus can be programmed. A W.D. circuit guarantees a correct working in difficult conditions. The RS485 interface is galvanically separated by the form. The form can be mounted on a profile.
Technical data
- Tension: 230V 50Hz
- Inputs: 16 analogical signals +/- 12V 12Bit-resolution
- Outputs: 2 outputs of 0-12V 8Bit-resolution
- Serial interface: RS485 galvanicly separated
- Addressing: 8 DIP-Switches
- Display: 8 Led red
- Work temperature: -20 to +50°C
- Connection: screw terminals 1,5mm
- Dimensions: 254x110x70 mm LxDxH
- Assembly: DIN NS32 or NS35 guide
CODE: 48-48-91
