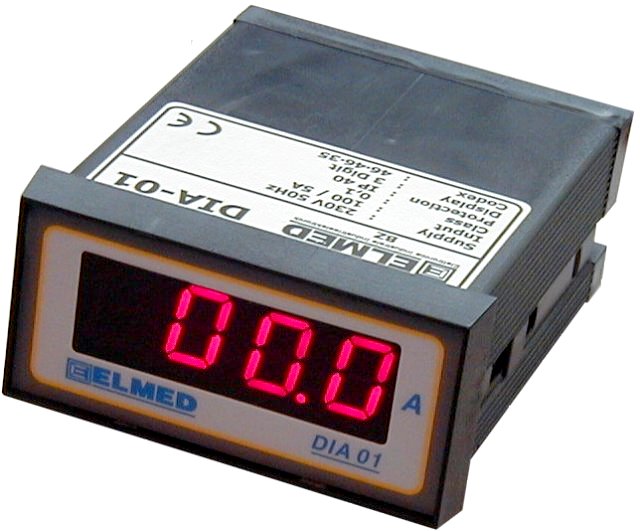

The precise appliance DIA-01 allows the Ampere high resolution currents. A current convertor changes the 0-5Amp. Current in a proportional tension. The transformation curve is linearized. Different current fields can be used.
Technical characteristics
- Feeding: 230V AC 50Hz
- Converter: _ _ _/5
- Anterior panel: red filter with polycarbonate
- Display: red 13mm high brightness 3,5 digit
- Measurement range: 0-1000 Amp.
- Line: linear
- Measurement precision: 1 Digit
- Work temperature: -20 bis +80°C
- PVC container: Noryl UL94-V-D selfextinguishing
- Protection grade: IP40
- Connection: extractable srew terminals to 1,5mm²
- Container dimensions: 72x36x81mm LxHxD
- Assembly container: 67x32,5x72mm LxHxD
- Assembly: by panel
- Weight: 200 grams
|
Tension |
Ampere |
Code |
|
|
220 V |
100 A |
46-46-22 |
3 digit |
|
220 V |
250 A |
46-46-23 |
3 digit |
|
220 V |
500 A |
46-46-24 |
3 digit |
|
220 V |
1000 A |
46-46-25 |
3 digit |
|
24 V |
100 A |
46-46-26 |
3 digit |
|
24 V |
250 A |
46-46-27 |
3 digit |
|
24 V |
500 A |
46-46-28 |
3 digit |
|
24 V |
1000 A |
46-46-29 |
3 digit |
|
220 V |
100 A |
46-46-49 |
3 1/2 digit |
