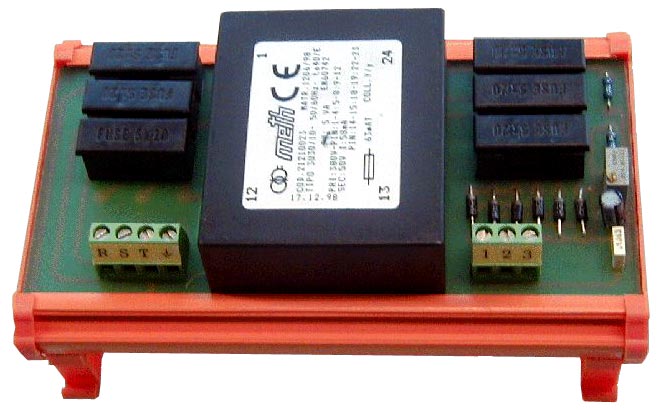

The FT380 unit allows the measurement of the alternating three-phase tension of 380V transforming it in a proportional direct current of 5V. The output signal is galvanically isolated from the input by a discoupling transformer. Both the primary and secondary ones are protected by fuses. In case of correction of the output signal a calibration trimmer is on the form. The form is supplied in a plastic container for the assembly on DIN guide. The application field is the measurement of the alter-phase tension in industry.
Technical characteristics
- Input tension: 3 x 380V three phase alternate
- Output tension: 5V DC max. - protected by c.c
- Output current: 5mA - max.
- Primary fuse: 3 x 100mA
- Secondary fuse: 3 x 100mA
- Work temperature: -20 ÷ 80°C
- Connections: screw terminals to 1,5mm²
- Montage: NS32 or NS35 guide
- Dimensions LxDxH: 142 x 86.5 x 85mm
CODE: 48-48-01
