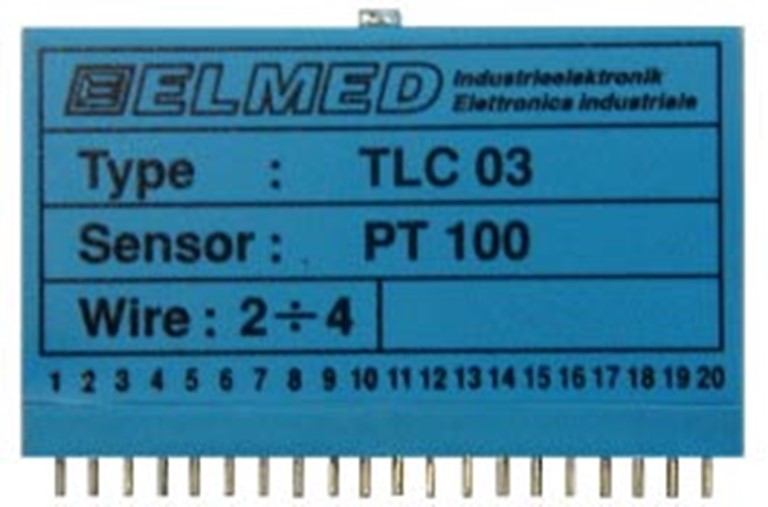

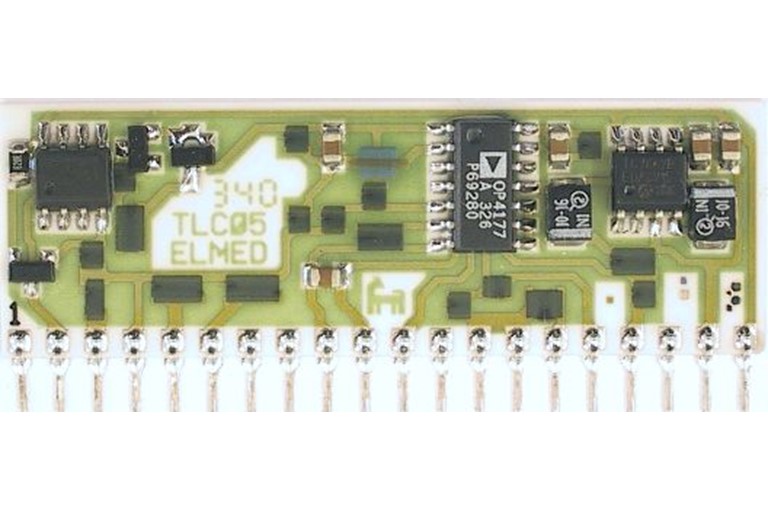

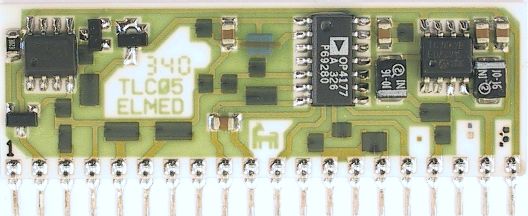

The TLC03 form permits the conversion of the temperature, measured by a PT100 probe, in a value of proportional tension. The transformation character T-V is linearized. The amplifier is made in hybrid technology with thick film. To make it work only one feeding is necessary. In case of failure of the sensor or short-circuits there is an output signal.
Technical aspects
- By 3 external jumpers temperature range can be selected: 10°C, 100°C and 800°C
- A negative tension 12 V is available on the external side.
- In case of failure of the sensor or short-circuit a 12V output is activated.
- High stability in long period.
- Linearization and calibration are obtained by laser trimming.
- There are no compensation trimmer.
- Temperature range 1 -10°C ÷ +10°C corresponding output -5V ÷ +5V DC
- Temperature range 2 -100°C ÷ +100°C corresponding output -5V ÷ +5V DC
- Temperature range 3 -800°C ÷ +800°C corresponding output -5V ÷ +5V DC
- Output signal: ± 5 V
- Negative tension 12 V: 50mA
- Working temperature range: -20 ÷ 80°C
- Test tension 12 V DC
- Current absorption: 15 mA
- PT100 connection 2,3 or 4 wires
- Alarm output signal: +12V
- Package: SIL 20 p 2.54mm
- Dimensions LxDxH: 53x8x28 mm
CODE: 43-43-54
