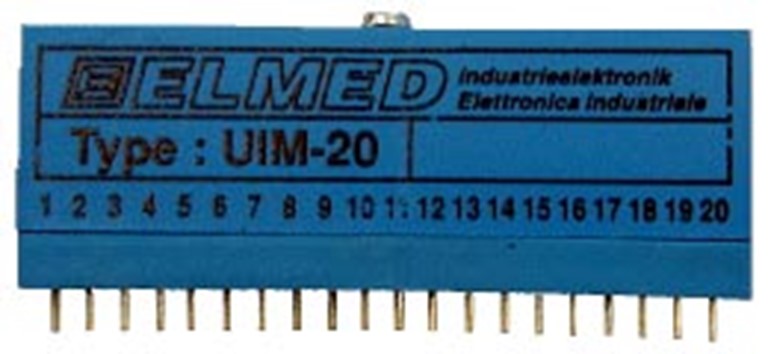

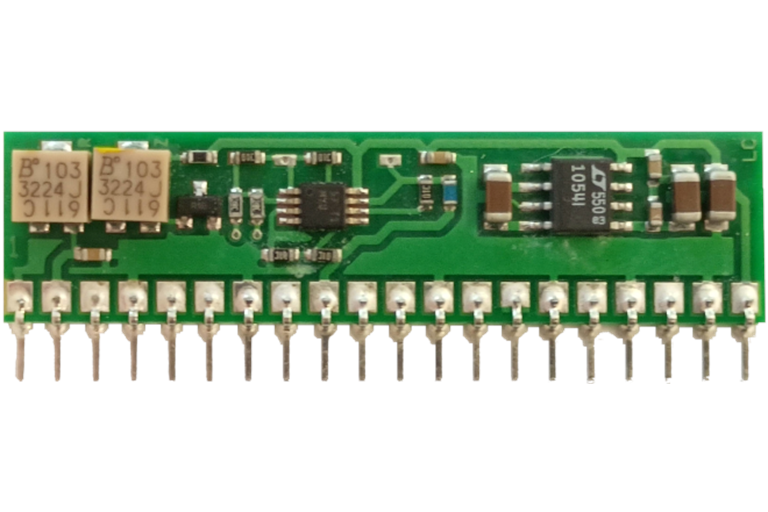

The UIM20 form allows the conversion of a tension signal of 0 - 5V in a corresponding current signal 4-20 mA. The output characteristic is proportional to the input signal and keeps a long stability also thanks to the hybrid technology on ceramic substrate it is made on. For the form feeding a single tension of 12V DC is necessary. This form finds its application in the field of the industrial measurement and of the regulation as it is indicated in managing the loop current control systems.
Technical data
- High stability over the time
- Absence of calibration trimmer
- Laser calibration
- Small dimensions
- Availability of an external tension of -12V
- Work tension: 12 V DC
- Current absorption: 30 mA in charge
- Control tension: 0÷5V DC
- Output current: 4÷20 mA
- Negative tension 12 V: 50mA
- Work temperature: -20 ÷ 80°C
- To be placed by 20 SIL p.2.54mm support
- Form dimensions LxH: 50.8x25.4 mm
CODE: 07-07-142
