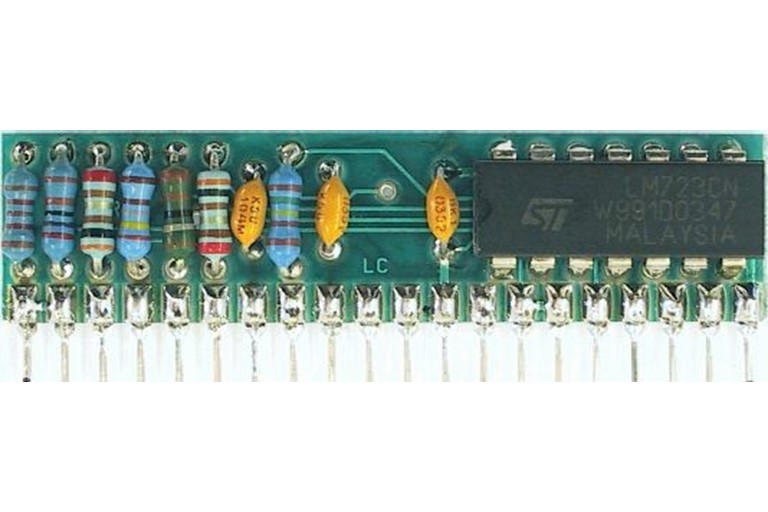

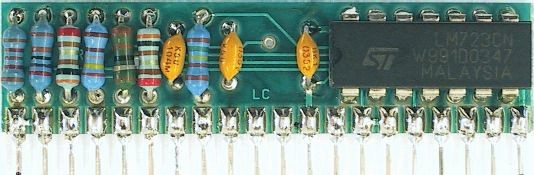

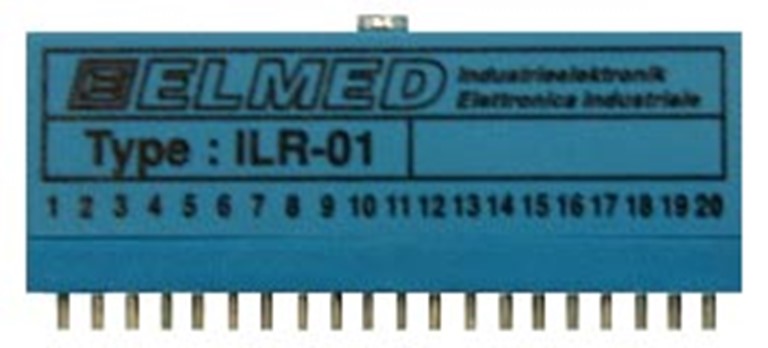

The ILR01 form allows feeling in case of current limitation to the sensors fed in tension. It supplies an output tension of about 10 V but it limits the absorption in case of short circuit at 50mA avoiding the spreading of great current consumption due to the short circuit. It is excellently used as “front-end” form in the feeding of many sensors here a short circuit would stop all the system working.
Technical data
- No time limit working in case of short-circuit
- Great stability over the time
- Trimmer absence in calibration
- Work tension: 12 V DC
- Output tension: 10V DC
- Work current: 50 mA
- Short circuit current: 120 mA
- To be placed by SIL 20 support
- Work tempoerature: -20 ÷ 80°C
- Form dimensions LxDxH: 53x8x25.4 mm
- Support dimensions LxDxH: 53x8x4 mm
CODE: 43-43-51
