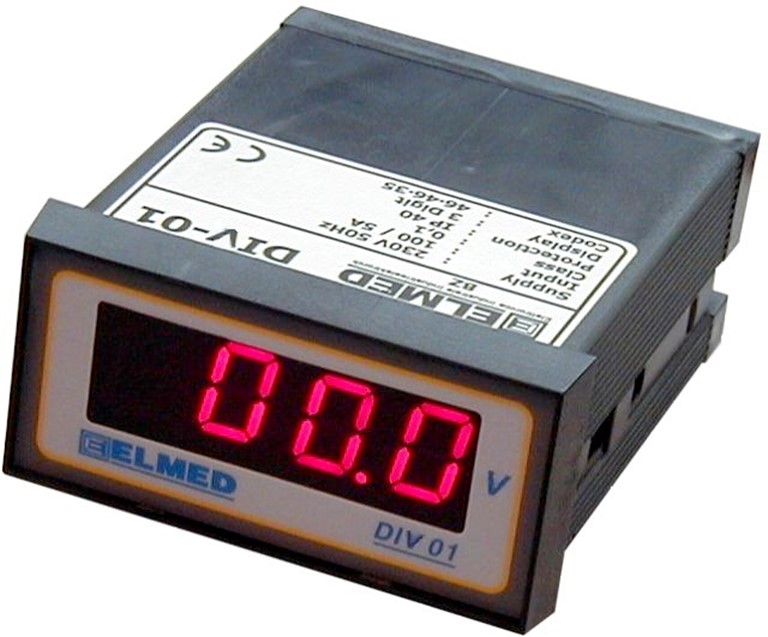

The DIV-01 high precision unit is used for the measurement and the visualisation of the alternating tension. The input tension is rectified and linearized inside. A signal which is proportional tot o the input is directed to an A/D convertor and visualised on the 3 numbers display.
Technical characteristic
- Tension: 230VA-50 Hz
- Input tension: 0-600 V AC
- Front: red filter with polycarbonate
- Display: red 13mm high brightness 3 digit
- Range: 0-600 V AC
- Line: linear
- Measurement precision: 0,1 Digit
- Work temperature: -20 to + 50°C
- Container: NORYL UL94V-0 self extinguishing
- Protection grade : IP40
- Connection: screw terminals 1,5mm
- Dimensions: 72x36x81mm LxHxD
- Assembly dimensions: 67x32,5x72mm LxHxT
- Assembly: for electric panels
- Weight: 200 grams
- EU-Rule: certified
|
