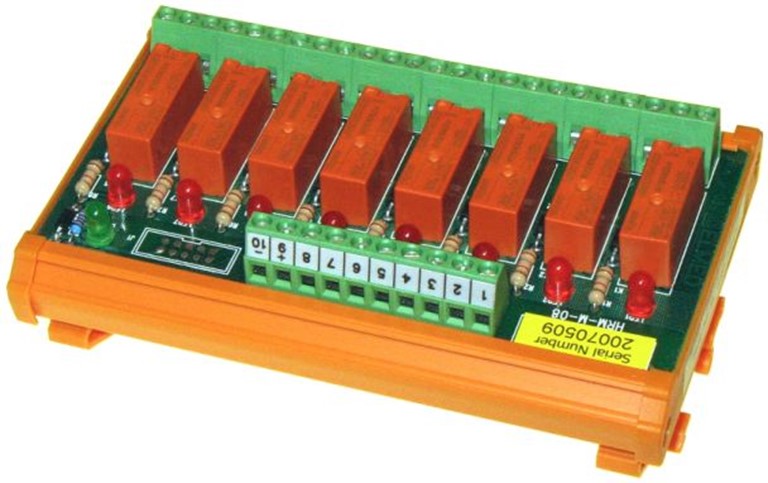

8 Relay-form - HRM-08

8 Relay-form - HRM-08

Relay tecnical aspect

Input tension	12v	24v	48v
Minimum input tension	8.4v	16.8v	33.6v
Maximum input tension	28.2v	56.4v	112.8v
Minimum work current	19.3mA	10.2mA	5.0mA
Terminals output tension	250v	250v	250v
Output work current	8A	8A	8A
Response time	7/3ms	7/3ms	7/3ms
Bobbin thermical charge	1.5w	1.5w	1.5w
Bobbin maximum temperature	110°C	110°C	110°C
Maximun resistive charge	2000VA	2000VA	2000VA
Isolation voltage	5000Veff	5000Veff	5000Veff
Dimension LxWxH (mm)	132x87x54	132x87x54	132x87x54

Contact material , Silver oxyde cadmium	AgCdO	AgCdO	AgCdO
Contact class VDE 0435T120 norm	III A	III A	III A
Contacts mechanical lasting	30x10^6	30x10^6	30x10^6
Iisolation model VDE 0110b/02.79 norm	C/250	C/250	C/250
Vibration resistance close/open	20/5 g, 10 ..500Hz	20/5 g, 10 ..500Hz	20/5 g, 10 ..500Hz
Work temperature	-40 ... +85		-40 ... +85		-40 ... +85
Relay protection VDE 0470 norm	IP 67	IP 67	IP 67
Terminals expansion	0,5 ... 2,5mm²	0,5 ... 2,5mm²	0,5 ... 2,5mm²
Relay model	Schrack RY II	Schrack RY II	Schrack RY II
Concession: VDE, SEMNO, EMKO, DEMKO, SETI, SEV, UL, CSA

Order info

Modul		12V	24V	48V
HRM-M-08	Comm. neg.	43 43 91	43 43 92	43 43 93
HRM-P-08	Comm. pos.	43 43 94	43 43 95	43 43 96
HRM-W-08	AC	43 43 88	43 43 89	43 43 90
