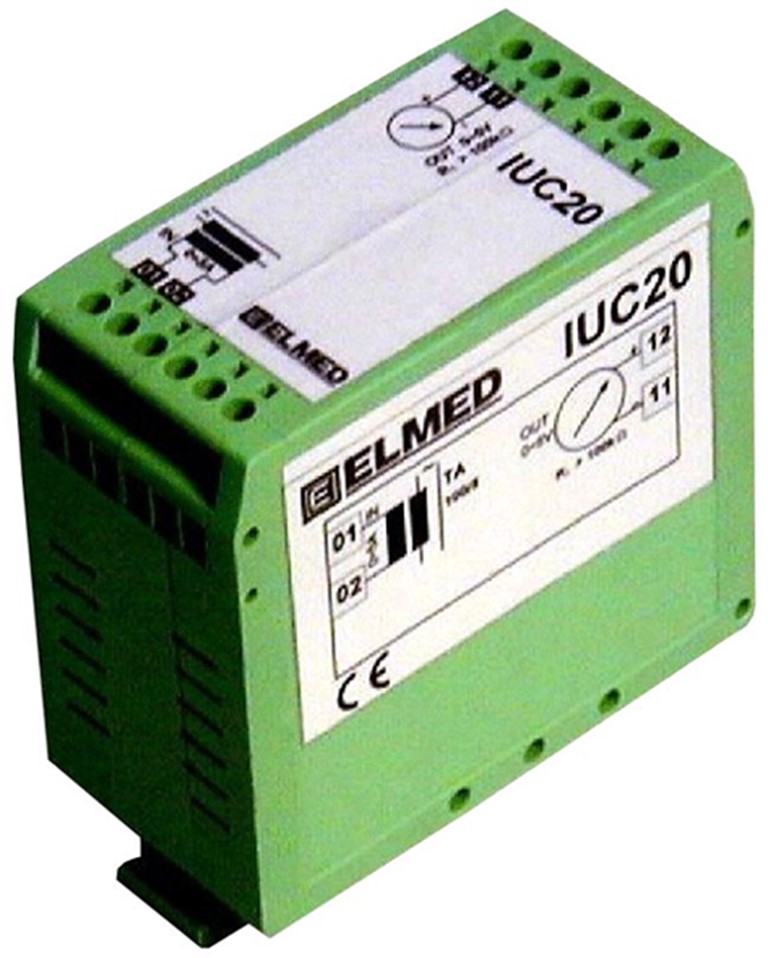

IUC-20 allows to measure the input current of 1 TA. The instrument changes the input current of 0.5 Amp. In an output tension of 0-5V DC. The output tension is linear and galvanically separated. The application field is in the measurement and regulation technology.
Technical characteristics
- Input current: TA_ _ /5Amp.
- Output tension: 0-5V DC
- Output resistance: > 100 K Ohm
- Output tension: linear
- Temperature range: -20 bis +80°C
- Connection: screw terminals to 1,5mm²
- Dimensions: 40x80x80 LxDxH
- Assembly: DIN NS32 or NS35 guide
- EU rule: certified
CODE: 48-48-108
