Irrigation system with display

Conveniently and reliably control and monitor the irrigation of the fruit or green area. And all of this comfortably directly from the PC, with the help of the very clear and powerful visualization software.

Worry-free irrigation

No stress, no problems. The Elmed irrigation system ensures reliable control

By areas

The entire system can be divided into areas. In each of these zones, one or more pumps and valves can be located, which are always switched together for that zone.

Timely

For each weekly schedule, different days of the week can be chosen, with any combination possible (only one day or all days).

Automatically or manually

All configured irrigation programs can also be started or stopped manually. It is also possible to switch individual valves, pumps, or other objects.

Fault-tolerant

Functional failures in elevated tanks, filters, pumps, and valves are automatically displayed.

In conjunction

When connected to an Elmed weather station, frost irrigation can be specifically controlled after an automatically triggered alarm.

Everything in view, everything under control

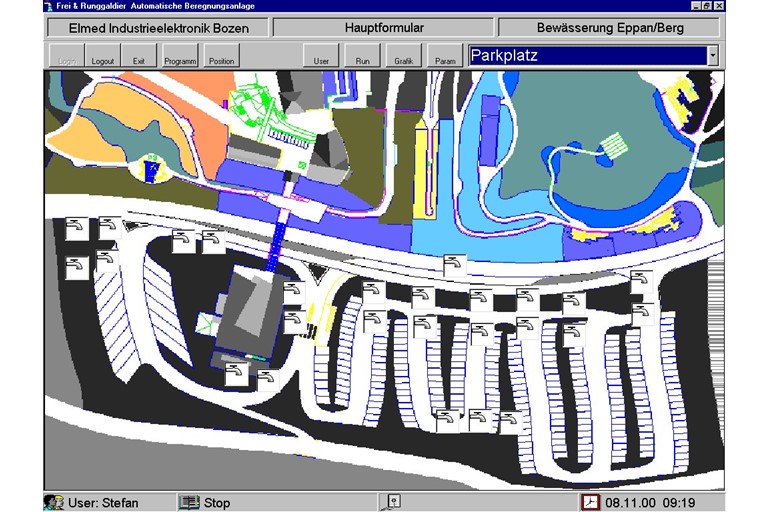

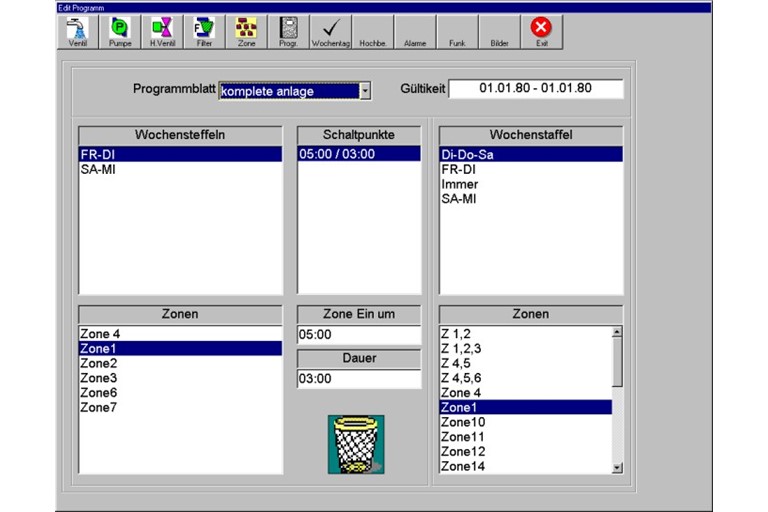

With the map overview or the freely selectable sections, you have your entire system always in view. The system can automatically control up to 250 irrigation valves. The irrigation times can be divided into several zones. Different switching times with daily and weekly programs are freely adjustable. Operational and fault messages are displayed on the screen as symbols.

You can:

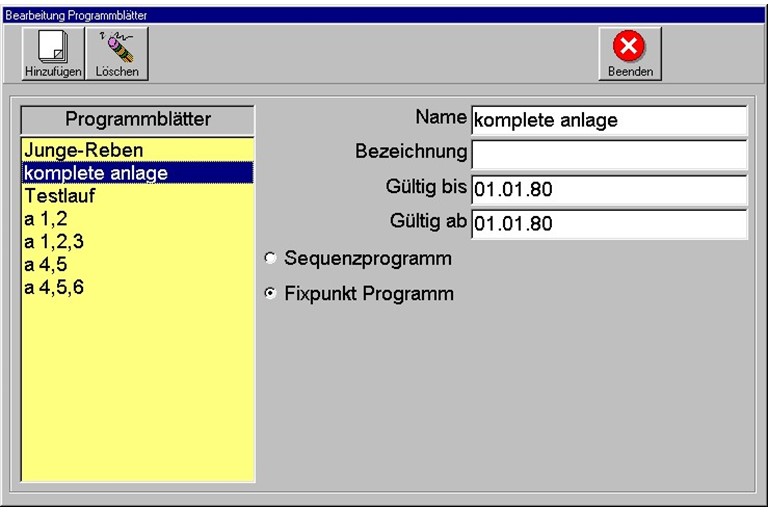

Any number of irrigation programs for the most diverse zones for different times/weekdays can be compiled

Valves, pumps, zone program sheets, weekly schedules, etc. can be added, edited, or deleted

The sequence can be determined and changed

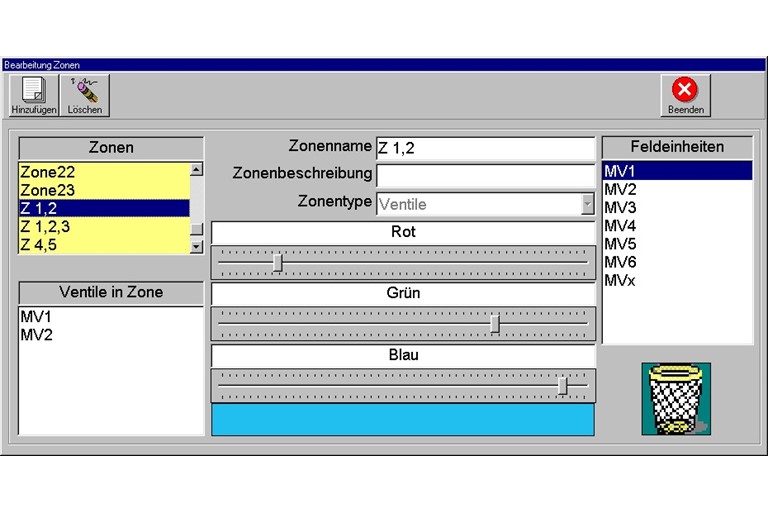

Select and remove zones

The start times and irrigation duration can be determined

Valves can be opened and closed

Pumps can be added, edited, as well as turned on and off

The activation times of individual objects (valves, pumps, etc.) can be viewed as a bar chart. A valve that may be activated too infrequently or too often can thus be quickly identified.

Check the level of the storage tank

Inlet valves and pump open and close, detect any pressure losses in the filter station.

The threshold values for triggering an alarm can be individually determined and edited at any time.

It will automatically display when and where (at which tax unit) the alarm is triggered

The strengths of the Elmed irrigation system

Reliable irrigation programming including frost irrigation

Automatic and manual control of large areas through filter and pumping stations down to the individual valve

Password protected access

Automatic activation alarm and fault indication

Manual intervention possible
