Weather station FARG2000

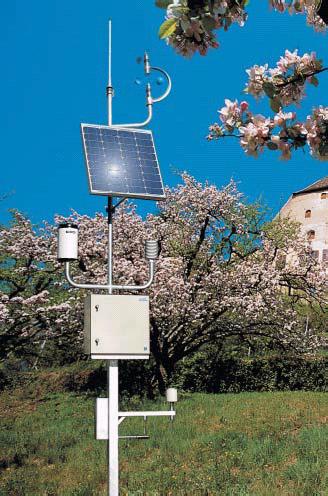

Measurement station

The measurement stations note the following data and send them to the central station where they are collected and processed so that the right forecast can be developed:

• wet and dry temperature
• air temperature
• relative moisture
• rainfalls, duration
• Wind intensity and direction

All the noted values are stored in  local database to be sent to a central computer at prearranged intervals

Telefon:
Answerphone

Thanks to the answerphone the measurement values of the weather station can be requested by phone (only authorized people).

By a timer function the times to get the data can be preset: data regarding temperature or punctation for example.

By an access code the authorized people can also enter by phone new alarm signals.

SMS:
Messaging

The registered members can request measurement values by SMS.

Within a very short time the central computer will send to the applicant, by a new SMS,  the data regarding the weather station of interest. For some station an alarm value can be communicated, too.

For example, if you are interested in temperature, when its value goes under the threshold, immediately a warning SMS is sent (for example: ALARM station 67 1,2°C). The general notices are sent to all the members.

For every form in an electronic register date, hour, phone numbers and all the SMS sent and arrived are stored. The register can be recalled by different methods pf filter and selection.

Weather data

The following data requests are possibile:

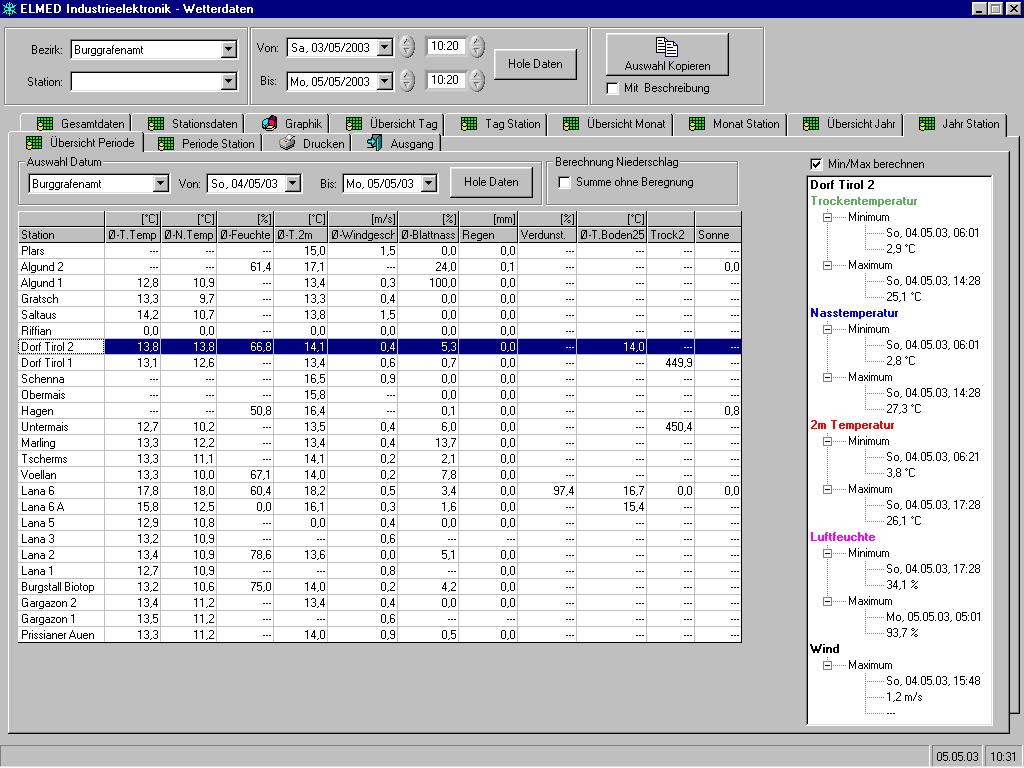

• A summary of all data measured by all the stations
• All data measured by one single station in table form
• Data visualisation in a requested time
• Single data can be selected or hidden
• Graphical diagrams can be enlarged

Presently the following functions are available:

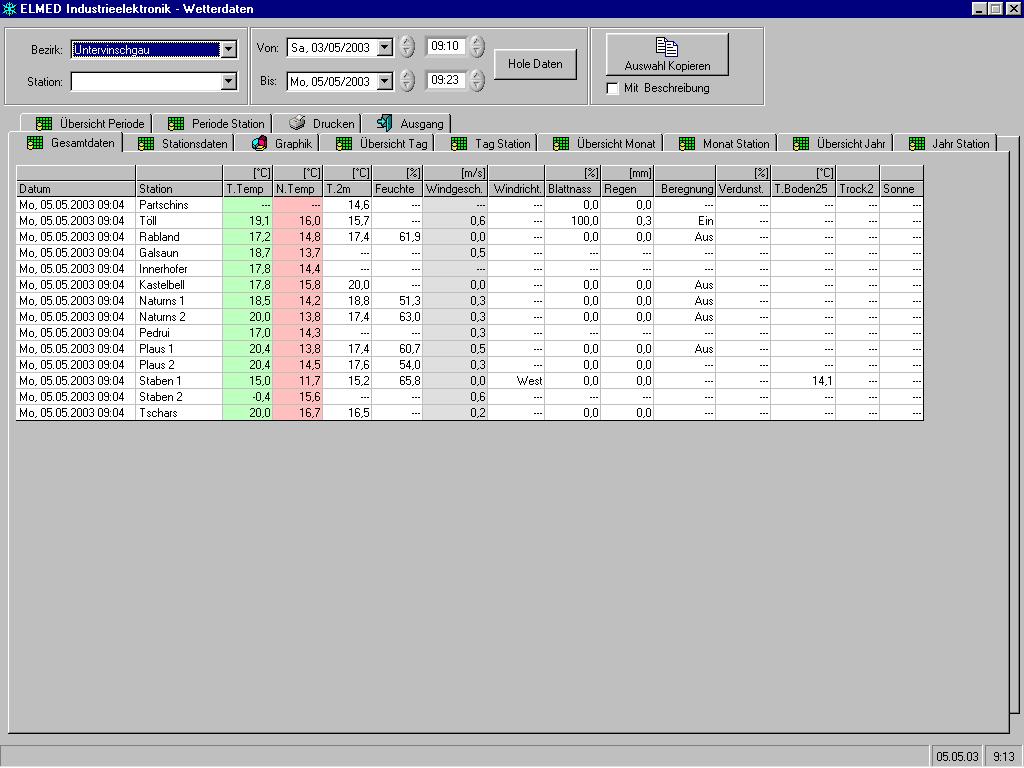

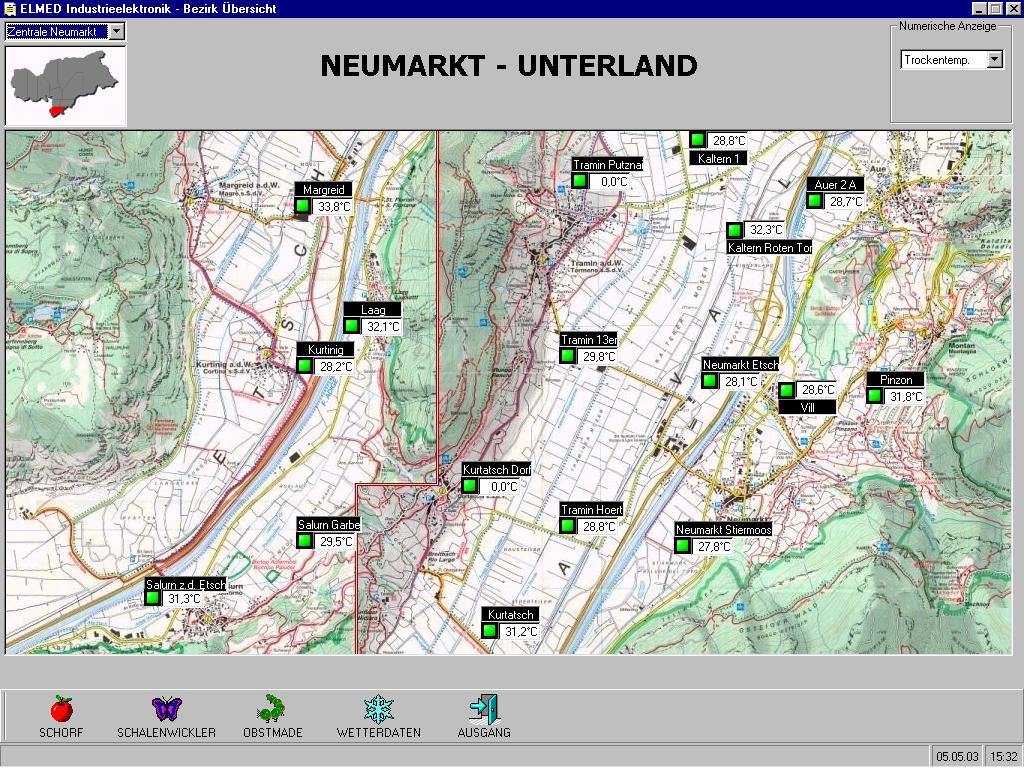

• General summary with the instantaneous data of every weather station.

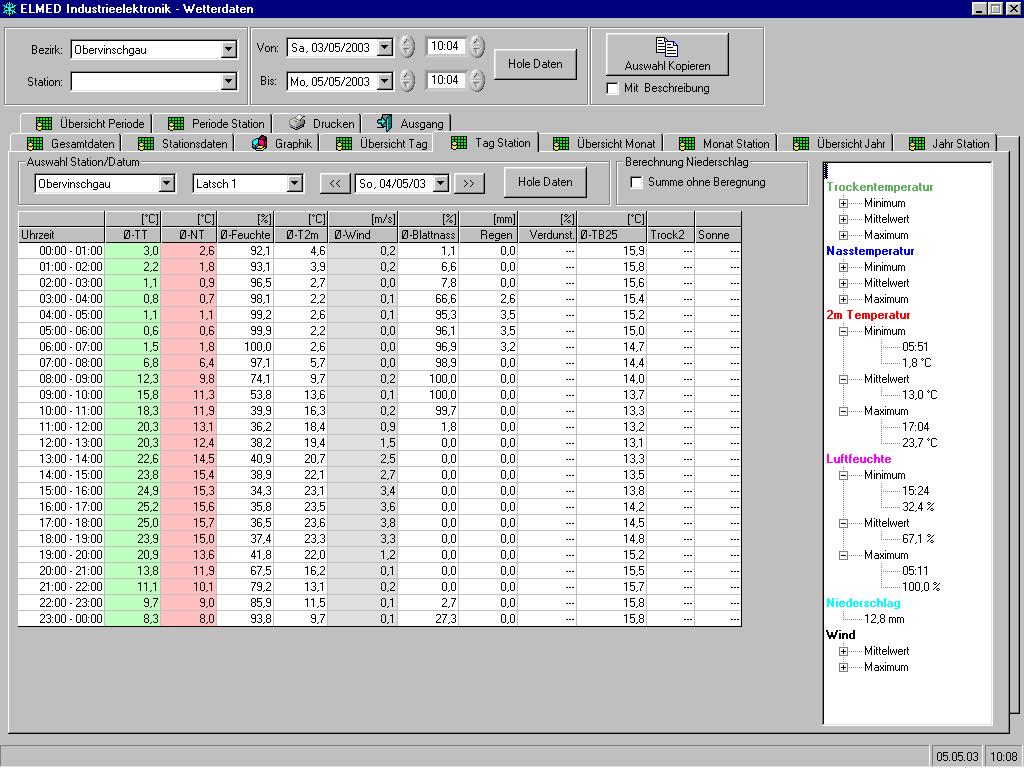

• Presentation in table form of all the measurement data of a station.

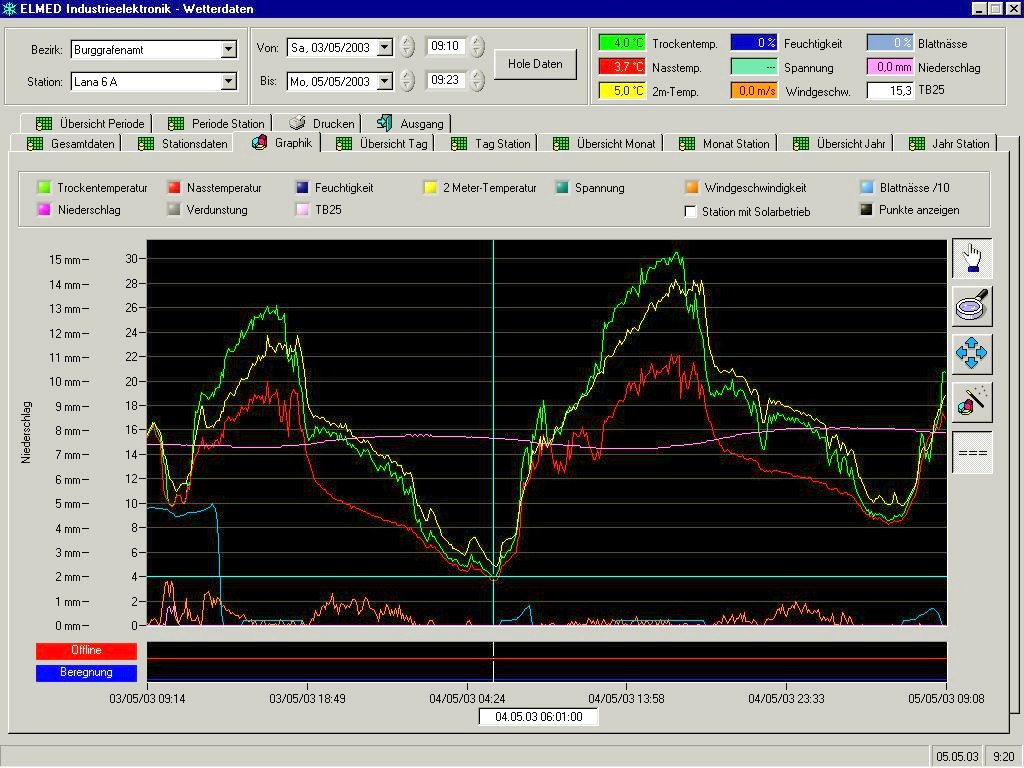

• Graphical presentation of the measurement values of a station regarding a scheduled time interval.
• Possibility of highlights/hiding by fading of the single measurement values.
• Possibility to enlarge (zoom) determined sectors previously chosen.
• Possibility  of reading by tracking cross of all the values measured in determined selected moments.
• Daily summary: presentation for each station of the medium, minimal and maximum values of one day.
• Monthly summary: presentation for each station of the medium, minimal and maximum values of one month.

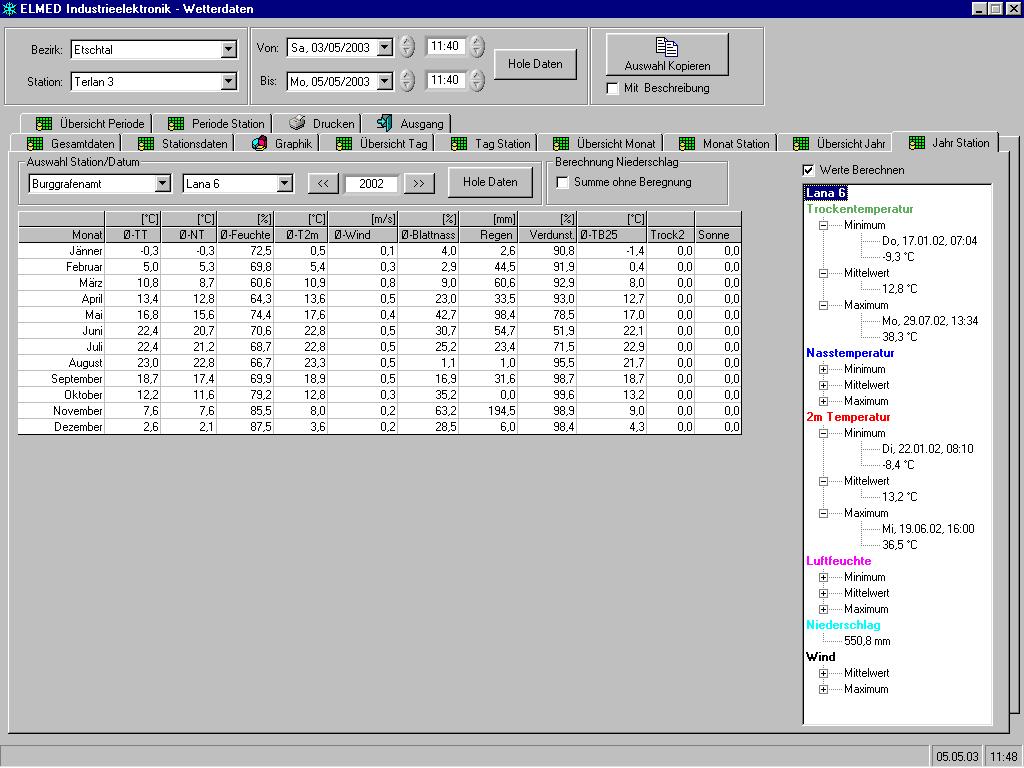

• Yearly summary: presentation for each station of the medium, minimal and maximum values of one year.

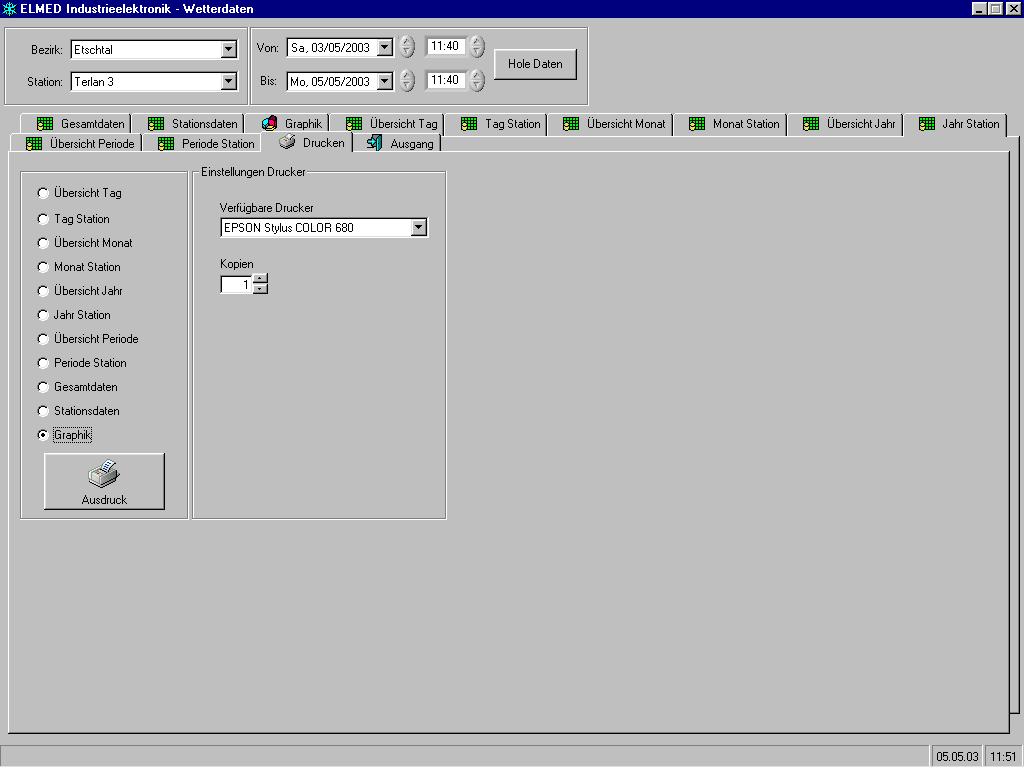

• Possibility to print every summaries  above mentioned.

Data about punctation

Regarding this subject the following functions are available:

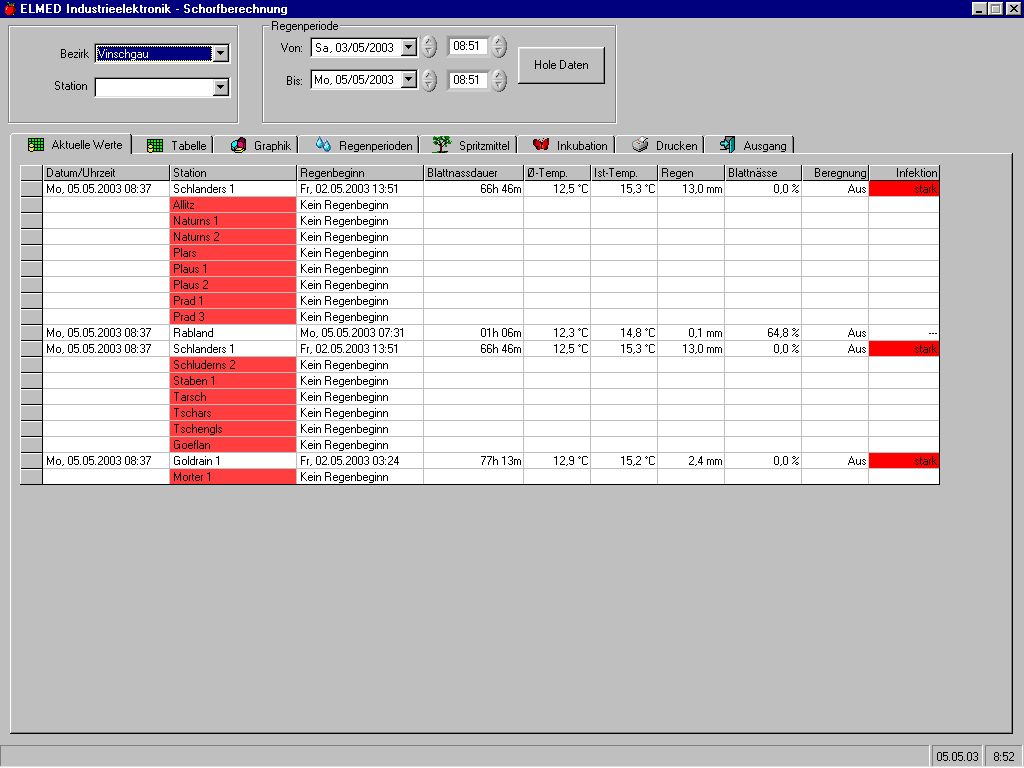

• Summary of the current situation about punctation. For every weather station the current status is indicated.

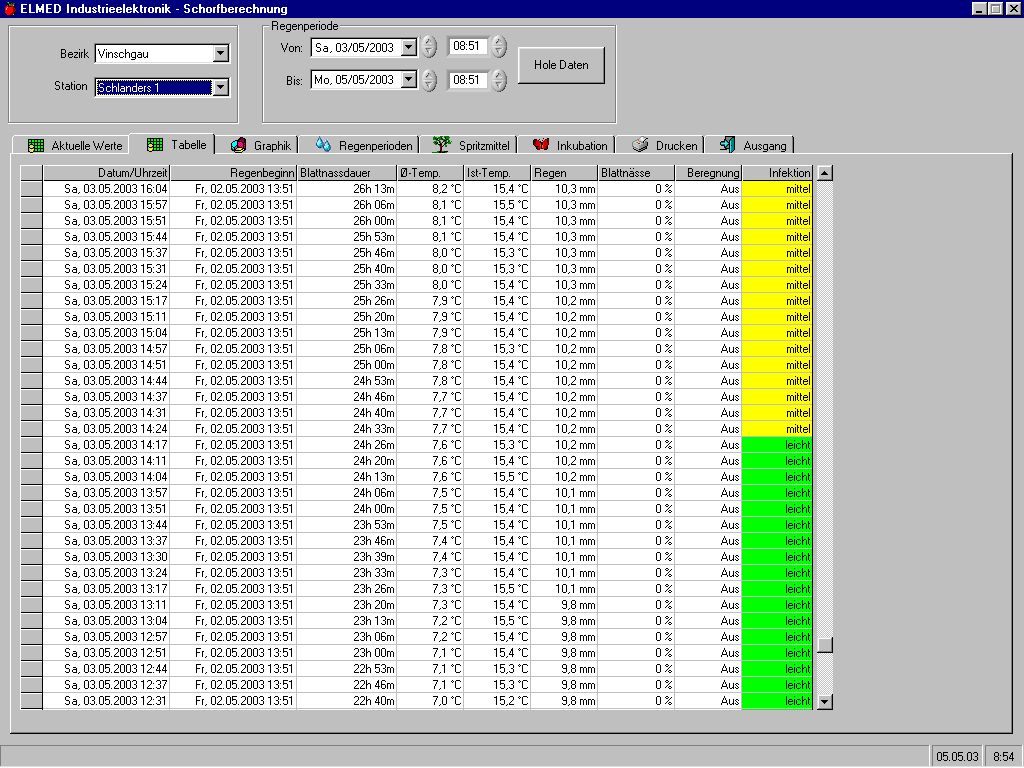

• Detailed summary. For the selected station all the most remarkable data regarding punctation are noted.

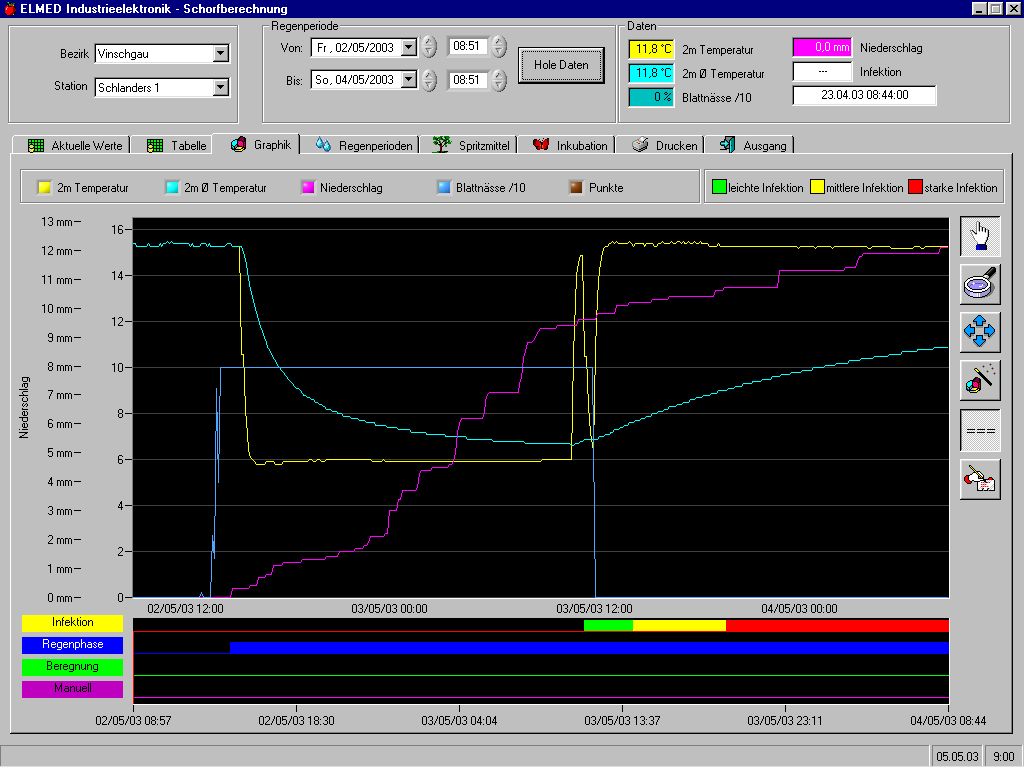

• Graphical representation of the chosen punctation period with average temperature (TM2) and infection grade. By this setting it is possibile to have a form where the rain periods can be processed and moved back and forth as you want. The values that have been corrected manually can be then moved to the other tables and indicated as “manually corrected”.

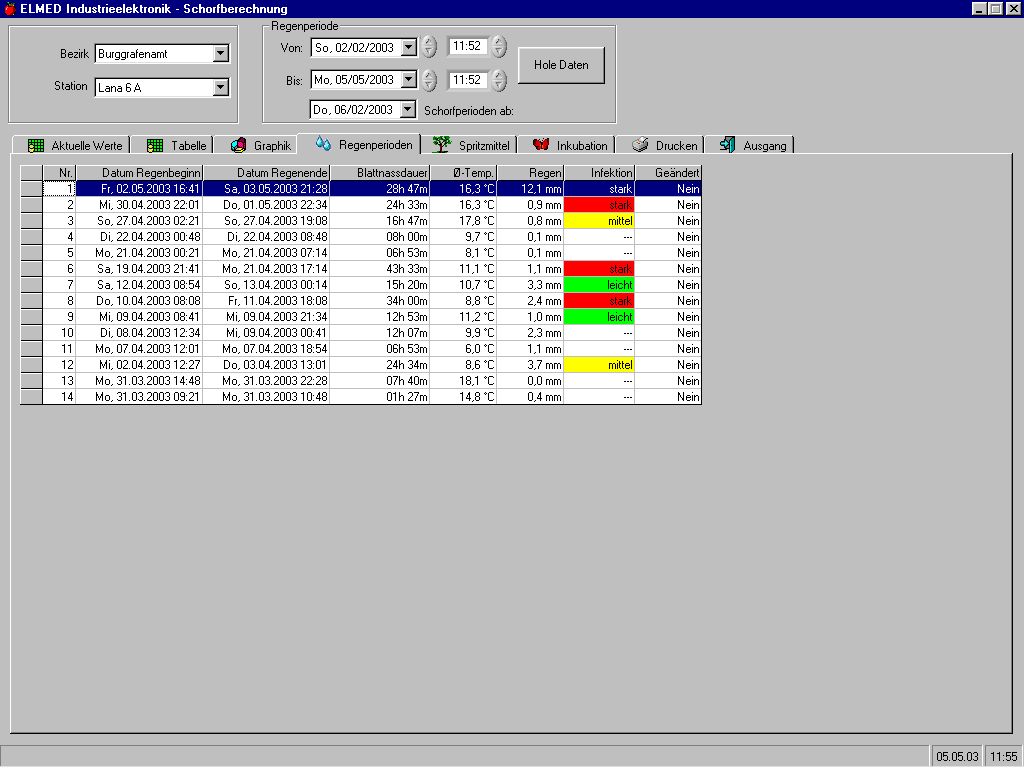

• Indication of the single rain periods for very weather station.
• Possibility to print every summaries  above mentioned.

Fire blight

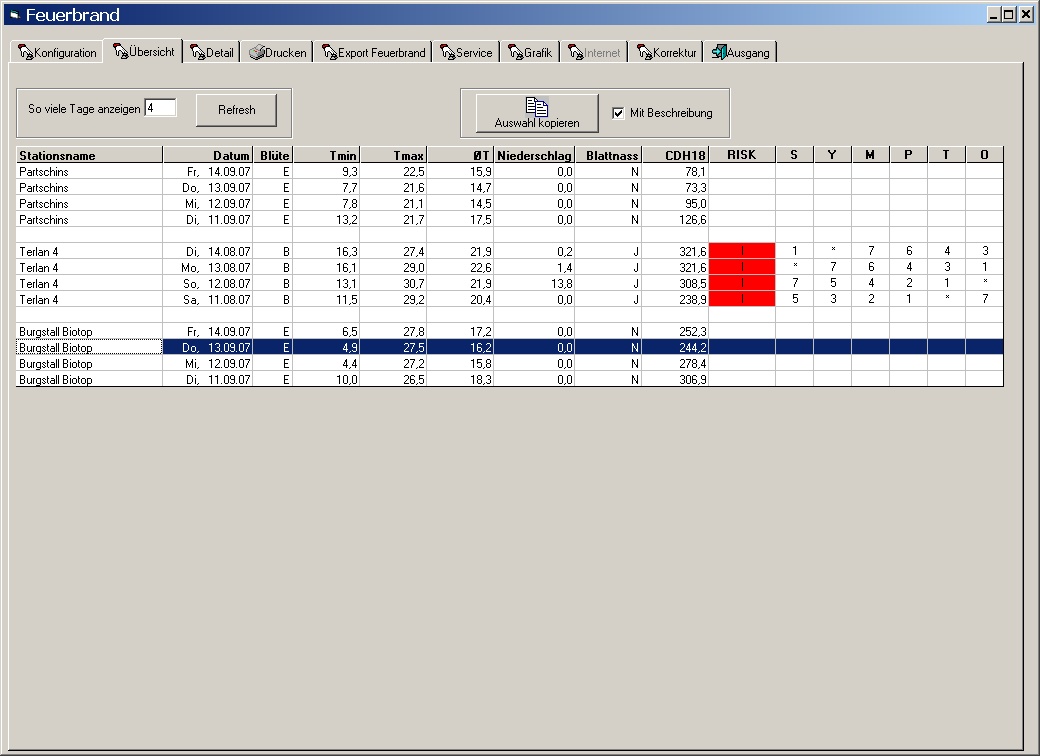

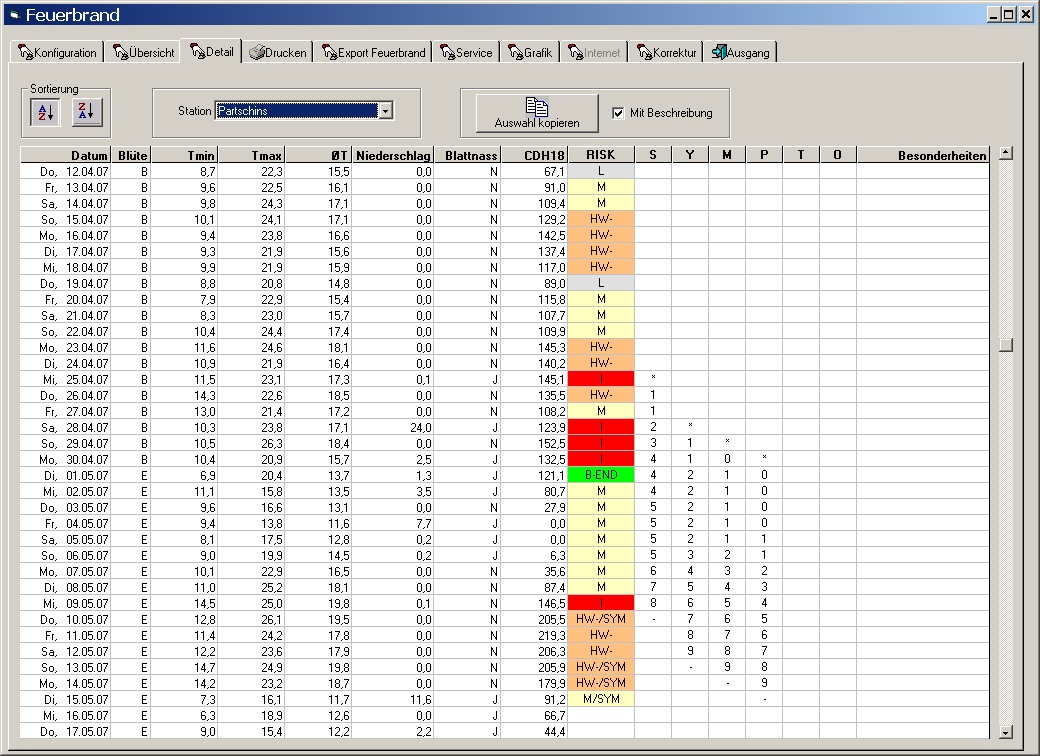

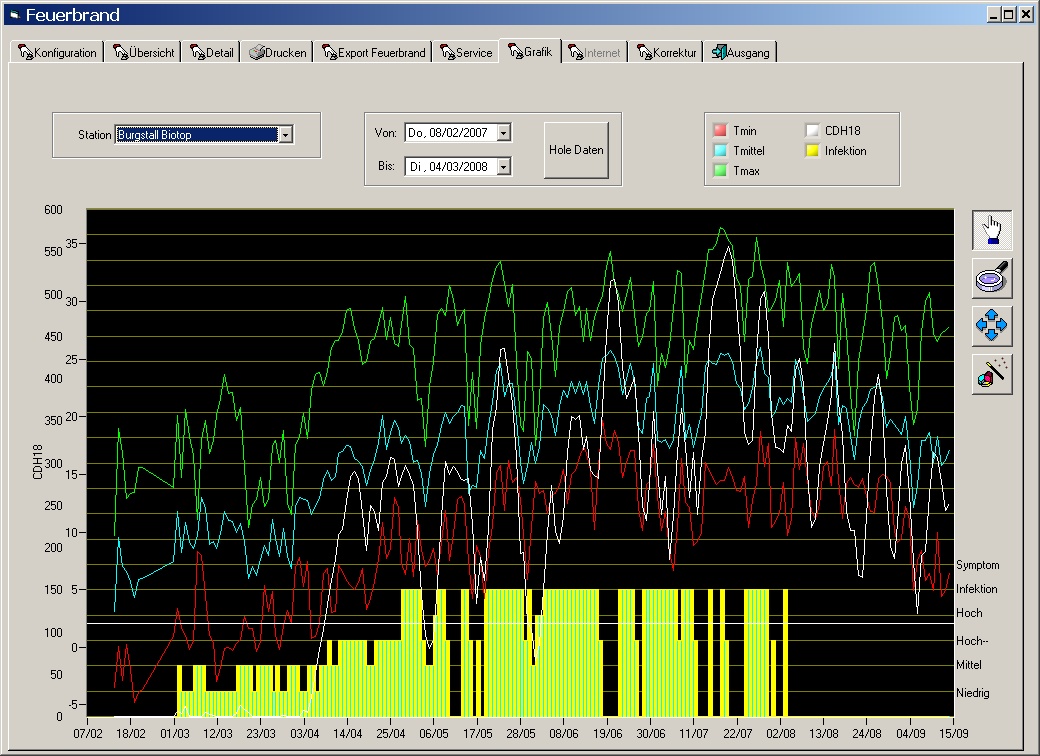

Fire blight prediction

Downloads:

FARG2000 maintenance manual
